Chapter 2 Water Crisis

§2.Water Issue

 The main issue in water crisis is waterissue. Water contamination in water environment such as rivers, lakes, and marshes has been progressed by population growth, population concentration, increase of contaminated loads from industries, as well as delay of measure for these problems. Consequently, these contaminated matters are not treated perfectly by natural purification ability. Water contamination also occurs in the ocean connected to the rivers.
 These water contamination issue has large effect in life and industry, changes ecosystem, and destroy living place for aquatic organisms, thus decreasing aquatic resources.

Cause and current condition of water environment pollution

 Since water contamination has serious effects on human body, life, and other aquatic organisms, many countries such as Japan regulate water quality standard as environment standard based on Basic Environment Law. In Japan, 1971 when environment standards were established, environment standard achievement rate of BOD (Biochemical Oxygen Demand) in rivers were changed largely. In 2007, it increased to 90% though its rate of COD (Chemical Oxygen Demand) in lakes and marshes was very law. Although it has been improved for several recent years, it is still 50%
 Nutrient enrichment in closed water area such as lakes, marshes, inner bay, and inland sea has progressed. Compared the achievement of the environment standard in rivers and ocean, it is still very low, especially in lakes and marshes where water quality improvement is urgent.

 When we look at the contamination loads depending on the source, it seems that point source decrease while non-point source doesn't decrease yet, and non-point loads amount in the total loads tends to increase.

 In Water Quality Environment Standards, there are two items established by Ministry of the Environment in Japan. They are "Environmental Quality Standards Concerning the Protection of the Human Health" and "Environmental Water Quality Standards Concerning the Conservation of the Living Environment." In the former standards, 26 types chemical matters such as cadmium are targeted while the latter classifies the environment items depending on rivers, lakes, marshes, and ocean.

Ministry of the Environment "Environment standards related to water contamination"

Contents of Water Quality Environment Standards,(Living environment)
Items Details
pH Hydrogen ion concentration index. It indicates the level of acidity and alkaline.
BOD BOD The amount of oxygen which is used by microorganisms in the water to breathe and decomposition.
COD COD Oxidizing agent amount which is consumed when heating decomposition of organic matters in water. It is used for index of organic matter water pollution, and is the environment standard in lakes, marshes and ocean.
SS

The abbreviation of suspended solid. It indicates the matters which is more than 1 mm and less than 2 mm in water.

DO Dissolved oxygen. It is oxygen amount dissolved in the water. Mainly it indicates the water pollution due to organic matters.
Number of colitis germ legions Number of E. Coli and similar bacteria. It indicates pollution due to human and animal wastes.
Total Nitrogen
(T-N)
The general name of compound contained nitrogen. Too much amount of nitrogen causes the progress of nutrient enrichment and overgrowth of phytoplankton.
Total Phosphorous
(T-P)
The general name of compound contained phosphorous. Too much amount of nitrogen causes the progress of nutrient enrichment and overgrowth of phytoplankton.
Total Zinc Total zinc the general name of compound contained zinc. Too much amount of zinc has effects on aquatic organisms.


 There are several issues in contaminated rivers, lakes, and marshes, such as emission of offensive odor, deterioration of growth environment for aquatic organisms, serious impact on ecological system and lack of water quality for industrial, agricultural, and living uses. Thus, the contaminated water poses problems not only for living things, industrial, and economical activities, but also for environment. Furthermore, apart from the phenomena occurring in flowing water, water quality problems occur in stagnant water areas.
 Weir upper stream stagnant water areas in dam lakes, lakes, and marshes, and rivers have self-purifying function which suspended matters are settled and removed by zero flow velocity and stagnant condition. However, if there is point source pollution load upstream or if water containing nitrogen and phosphorous flows to stagnant area due to pollution load of non-point source, the area has enough sunlight and time for propagation, which causes nutrient enrichment.
 There are various factors that affects on water quality in lakes and marshes, These factors can be roughly divided to 3 main types; "external loading", "internal loading", and "direct loading." External loading streams from watershed, while internal loading is caused by living substances in lakes and marshes. Direct loading comes from rainfall.

Example of loads affecting on lakes and marshes water quality
Clasification Example of loads
External load point source load ・daily wastewater
・industrial wastewater
・livestock industrial wastewater
non-point source load ・urban area
・agricultural area
・forest
Internal load ・from bottom sediment
・production in lakes・marshes
Direct load ・rainfall
・farming

※ External load :Load which flows into lakes and marshes from rivers
   Internal load :Load which organism production in lakes and elution from sludge
   Direct load :Load from rainfall or farm in the lakes, including load from underground water.
   Point source load :Load which can clasify the point of contaminations
   Non-point source load :Load which is difficult to clasify the point of contaminations.

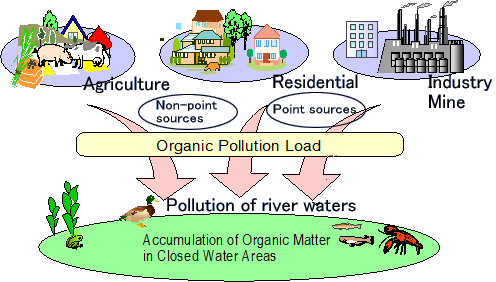

Cause of Water Contamination



Water issue in rivers

 Rivers are used to have a function purify water quality. Oxygen dissolves from air to water through water surface. Vegetation and microorganisms clean up the pollutants in rivers. Dissolution efficiency changes depending on the speed of stream. In rapid stream, dissolution efficiency is high since ruffle is large. In still-water surface, on the other hand, dissolution efficiency is low.
 When dissolved oxygen (DO) is 8.84 mg/l in clean water at 20℃, oxygen becomes saturated. In such area, microorganisms are activated. Activated microorganisms decompose and elaborate contaminated substances, which leads purification of water.
 The amount of oxygen which is required by microorganisms to decompose contaminated substances increases with increasing the amount of contaminated substances in rivers. If the amount of oxygen used by microorganism exceeds dissolved oxygen in the river, the river has too low oxygen level to provide oxygen toward aerobic organisms. That leads aerobic organisms to die. Without these living things, contaminated substances are not decomposed and are accumulated in the river. Contaminated rivers are not transparent and have a bad odor.
 Such contaminated rivers make various negative impacts.

 ●The impact of water contamination in living areas
  Contaminated rivers lessen the clarity of the water and release strong odor. In such rivers, there is a loss of good-quality spatial environment. This phenomenon tends to occur in lowland still-water rivers located in densely-packed urban central area.

 ●The impact of water contamination on aquatic organisms
  DO is fundamental for the fish and aquatic organisms. If DO is less than 3mg/l in a river, the river is not suitable environment for living organisms and will become inanimate environment.
 Moreover, contaminated substances lower permeation rate of solar light. Water plants are not able photosynthesize without enough solar light, which leads absence of oxygen in stream bed. The lack of oxygen causes root rot.
 The other issue is that harmful and toxic substances or heavy metals inflow into rivers. There are several cases that fish deadens due to operation mistakes in factories. In more serious cases, harmful and toxic substances constantly flow into rivers due to the lack of regulation. That causes rivers to be chronic inanimate environments.

 ●The impact of water use
  Water is the most frequently used as agricultural water. Water contamination causes organic failure, nutrient salt failure, and heavy metal failure. Organic rich water induces soils to be anaerobic and roots to rot. Nitric rich water causes excessive leaf growth in wetland rice. When we use river water which is contaminated by pathogenic bacterium or heavy metal as agricultural water, it might have serious impact on human bodies.
 Cooling water and washings are examples of industrial water uses. The most serious impact of water contamination on industrial water is reduction of amount of passing water due to fouling in plumbing. Moreover, plumbing defects by electric corrosion are also serious problem. Thus, water quality items which cause fouling and electric corrosion are the environmental indicators. In raw material water and washings for precise instrument and electron progressing materials, the indicators are established according to application.

Water issue in lakes and marshes

 Lakes and marshes are the stable sources of valuable water resource. These places are also suitable place for recreation. Thus, our daily lives are supported by lakes and marshes.
 However, before the establishment of Law Concerning Special Measures for Conservation of Lake Water Quality in 1984, the amount of pollution loads increased with the development of social and economical activities around lakes and marshes.
 Serious water contamination induces water issues such as obstruction of water supply, fishery damages, and decline in value of tourism.
  Water contamination leads nutrient enrichment, which then induces the following problems

 ●The impact of water contamination on drinking water
  ・Foul smell and taste issue
  ・Filtration issue
  ・Elution of nutrient salts, Fe, and Mn issue

 ●The impact of water contamination on recreational use
  ・Blue green alga
  ・Fresh water red tide

 ●Nutrient enrichment and blue-green alga富栄養化とアオコ

 Nutrient enrichment is the phenomena that the huge growth of aquatic plants and alga due to nutrient salts such as phosphorous and nitrogen.
 Nitrogen and phosphorous are contained in industrial and daily wastewater. By flowing these artificial phosphorous and nitrogen into closed water area such as inner bay and depositing, alga abnormally increase.

 From Spring to Summer, when the temperature of surface of water rises, there are different temperature layers in the water. On the surface, temperature increases while temperature decreases in the deep area. From July to August, the temperature of the surface approach its peak, it is hardly occur the water circulation at the top to the bottom. Then, there is less oxygen in the bottom of the water thus worsening water quality.
 In such condition, if nutrient enrichment progresses, phytoplankton abnormally increases on the surface. That leads alga bloom which green colors spreads out on the surface. The main phytoplanktons casing algal bloom are dinoflagellate and cyanobacterium. In these plankton, Mycrocystis aeruginosa of cyanobacterium is called blue-green algae.

The problems caused by blue-green algae
   ・Increase pH level
   ・Decrease DO
   ・Death of lots of fish
   ・Bad odor
   ・Filtration deficit in purification process

●The impact of water contamination on aquatic organisms
 Since aquatic organisms include various types such as phyto/zoo plankton, benthic livings, fish, and reed, the impact of water contaminations on these organisms are different.
 The types of fish change according to the level of nutrient enrichment. In addition, temporal withering of the large amount of phytoplankton lowers the level of oxygen, which causes anoxic water. Anoxic water, then, leads mass mortality of organisms.

 ●The impact of water contamination on fishing industry
  Damages of fisheries by water contamination are reported everywhere.
  In addition to direct damage by contaminated substances, fish are chronically
  influenced by algal blooms.
  The factors affecting on fishing industry are the following.
   ・The effect of water temperature
   ・The lack of DO
   ・The effect of chlorine
   ・Nutrient enrichment
   ・Chemical agent
   ・Contamination by dioxin


Water issue in ocean

●Characteristics of water issue in ocean
 The serious polluted condition of ocean by rapid development of developed countries in 20th century has been improved except sudden accidents. However, all wastewater is finally discharged to the ocean, so the root of problem is not solved yet. Also, developing countries in Asia and Africa have rapidly economically develped and discharged large amount of polluted matters with the industrial production. Thus, ocean pollution has progressed in world wide.
 In coast areas, land reclamation and dredging have been conducted continuously for urban development and disaster prevention work, and lots of artificial buildings were constructed. Even in other areas such as inner bay for fish farming, environment destruction has progressed due to densely packed farming. Thus, these areas becomes sea deserts where seaweed dead, and that leads the reduction of abalone, sea egg, and fishes.
 On the other hand, large amount of nitrogen and phosphorous have been discharged from our rich lives, and that destorys the balance of ecosystem in the ocean. Nutrient enrichment also emerges and causes red tide due to the overgrowth of phytoplankton. Moreover, when it becomes the lack of oxygen in the bottom of ocean, blue tide which emerges due to the water mass without oxygen in summer season. Nutrient enrichment leads overgrowth of sea stars and jelly fish and damages seaweed and shelf of coral. Due to these factors, wetland area in the ocean has been destroyed and expands sea desarts.


●The factor of marine pollution
・Chemical substances
 Chemical substances such as agricultural chemicals, synthetic fiber, and plastics, run into sea areas by rain. Chemical substances were found in rivers and marine organisms including fish.

・Heavy metals
Consuming large amount of organic mercury and cadmium in seawater causes pollution disease.

・Endocrine disrupters
 To prevent shellfish from adhering to ships and preserves, tin compounds, such as tributyltin and tryphenyltin, are used. Marine organisms which are vulnerable to pollution reduces the amount. Especially, genital anomalies in shellfish were reported.

・Oil contamination
 Main emission source is ships. The causes of oil spill in sea are not only marine accidents, but also ballast water and washing water for ships.

・Biotic contamination
 Ballast water is the sea water which is used to maintain ship's stability. Since ballast water is taken in the coastal waters in one place and discharged in other place, it might cause serious biotic contamination due to migration of toxic algae and shellfish.Thus, solving ballast water issue is regarded as one of international agendas

Reference: 「CarbonFiber Water Purifiation Technology Guidline −Environment−」
 (CarbonFiber Make Water Use Association)
